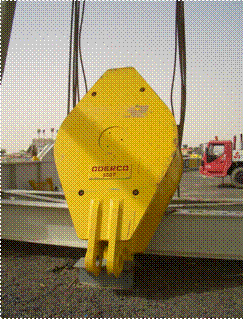

Traveling Block
Oderco Blocks are available with static load ratings up to 750 tons.
- Designed in accordance with API-8C Analyzed with Cosmos (FE Program) to minimize sizes and weights
Rating (Tons) | Wire Rope Size (In) | Number Of Sheaves | Width (In) | Height (In) | Weight (Lbs) |
250 | 1 1/8, 1 ¼ | 4 | 24 | 88 | 6700 |
350 | 1 1/4 , 1 3/8 | 5 | 28 | 102 | 8800 |
500 | 1 3/8, 1 ½ | 6 | 34 | 118 | 16500 |
650 | 1 5/8, 1 ¾ | 6 | 35 | 120 | 17000 |
750 | 1 ¾, 1 7/8 | 7 | 39 | 122 | 19500 |
