Trailer Rigs

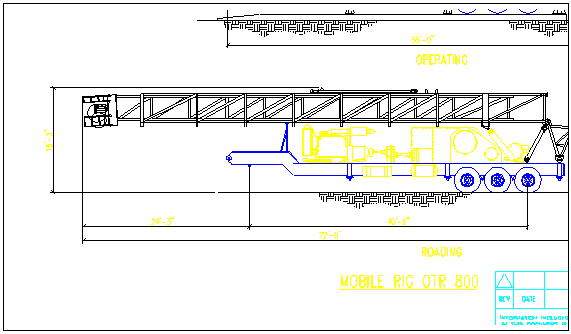

Trailer Rigs OTR 800

• 400,000 lbs static hook load capacity on 10 lines
• 120 ft clear height mast
• 22,000 ft of 4 ½ in racking capacity
• Mast complete with all accessories and electrical
• Four axles each rated for 25,000 lbs with suspension
• 8” main drawwork shaft
• 48,000 lbs single line pull
• 44x12 brake
• Lebus grooves
• 13,000 ft of 9/16 in sandline capacity
• Special water Cooling system
• Two Caterpillar 3406 DITA engine with Allison transmission and all accessories
• Special designed gear box
• Limit travel safety system
• 3000 psi @ 60 gpm hydraulic system
• Stanless steel control panel
• Special design folding platform and handrails
• 100 gallon fuel tank ( extra tank if requested)
• Two air winches (hydraulic are optional)
