Trailer Rigs

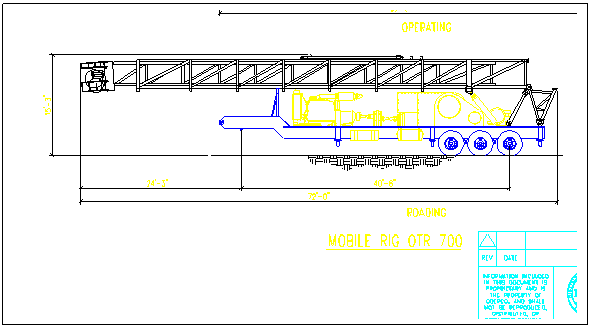

Trailer Rigs OTR 700

• 350,000 lbs static hook load capacity on eight lines
• 118 ft clear height mast
• 20,000 ft of 4 ½ in racking capacity
• Mast complete with all accessories and electrical
• Four axles each rated for 25,000 lbs with suspension
• 7” main shaft
• 50,000 lbs single line pull
• 44x12 brake
• Lebus grooves
• 13,000 ft of 9/16 in sandline capacity
• Special water Cooling system
• Caterpillar 3408 DITA engine with Allison transmission and all accessories
• Special designed gear box
• Limit travel safety system
• 3000 psi @ 60 gpm hydraulic system
• Stanless steel control panel
• Special design folding platform and handrails
• 100 gallon fuel tank ( extra if requested)
• Two air winches (hydraulic are optional)
