Trailer Rigs

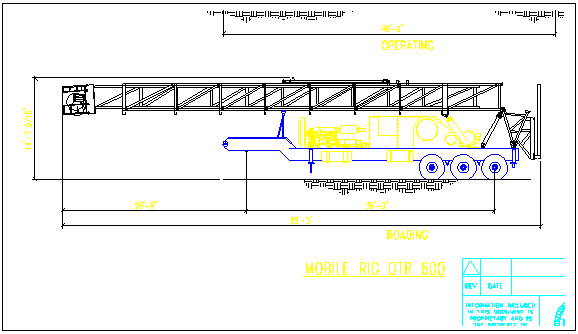

Trailer Rigs OTR 600
- 300,000 lbs static hook load capacity on eight lines
- 108 ft clear height mast
- 18,000 ft of 4 ½ in racking capacity
- Mast complete with all accessories and electrical
- Three axles each rated for 25,000 lbs with suspension
- 7” main shaft
- 45,000 lbs single line pull
- 44x12 brake
- Lebus grooves
- 13,000 ft of 9/16 in sandline capacity
- Special water Cooling system
- Caterpillar 3408 DITA engine with Allison transmission and all accessories
- Special design gear box
- Limit travel safety system
- 3000 psi @ 60 gpm hydraulic system
- Stenless steel control panel
- Special design folding platform and handrails
- 150 gallon fuel tanl (extra tank if requested)
- Two air winhes (hydraulic are optional)
