Trailer Rigs

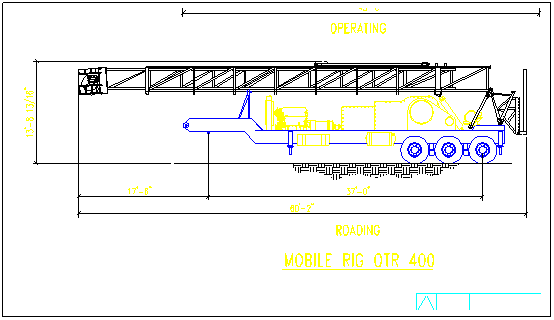

Trailer Rigs OTR 400

• 210,000 lbs static hook load capacity on six lines
• 98 ft clear height mast
• 14,000 of 3 ½ in racking capacity
• Mast complete with all accessories and electrical
• Three axles each rated for 25,000 lbs with suspension
• 6” main drawwork shaft
• 42x12 brake
• 42,000 lbs singlr line pull
• Lebus grooves
• 13,000 ft of 9/16 in sandline capacity
• Special water Cooling system
• Caterpillar 3306 DITA engine with Allison transmission and all accessories
• Special designed gear box
• Limit block travel safety system
• 3000 psi @ 60 gpm hydraulic system
• Stainless steel control panel
• Special design folding platform and handrails
• 100 gallon fuel tank (extra tank if requested)
• Two air winches (hydraulic optional)
