Trailer Rigs

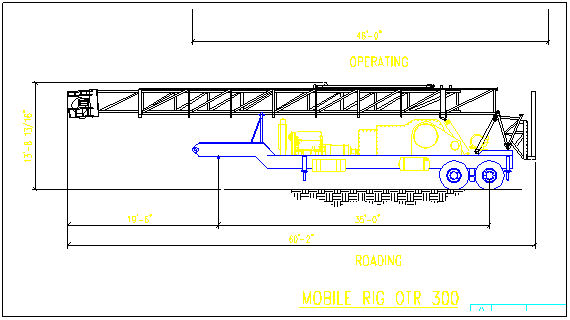

Trailer Rig 300

• 160,000 lbs static hook load capacity on six lines
• 98 ft clear height mast 14,000 ft of 3 ½ in racking capacity
• Mast complete with all accessories and electrical
• Four axles each rated for 25,000 lbs with suspension
• Airconditioned with leather seat cabin
• 6” main shaft
• 40x10 brake
• 34,000 lbs single line pull
• Lebus grooves
• 13,000 ft if 9/16 in sandline capacity
• Special water Cooling system
• Caterpillar 3306 DITA engine with Allison transmission and all accessories
• Special designed gear box
• Limit travel system
• 3000 osi @ 60 gpm hydraulic system
• Stainless steel control panel
• Special design folding platform and handrails
• 150 gallon fuel tank (extra tank if requested)
• Two air winches (hydraulic are optional)
