Trailer Rigs

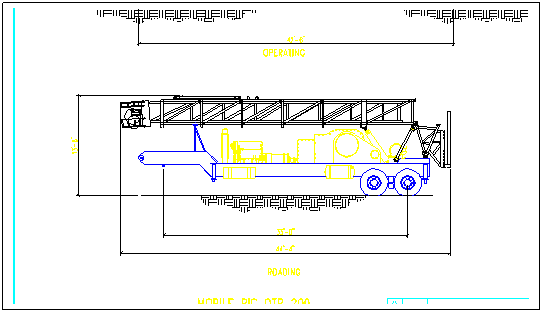

Trailer Rigs OTR 200

• 110,000 lbs static hook load capacity on four lines
• 74ft clear height mast
• 10,000 ft of 2 7/8 in racking capacity
• Mast complete with all accessories and electrical
• Two axles each rated for 25,000 lbs with suspension
• 6” main drawwork shaft
• 40x10 brake
• 30,000 lbs single line pull
• Lebus grooves
• 13,000 ft of 9/16 in sandline capacity
• Special designed gear box
• Caterpillar 3116 DITA engine with Allison transmission and all accessories
• Special design gear box
• Limit travel safety system
• 3000 psi @ 60 gmp hydraulic system
• Stanless steel control panel
• Special design folding platform and handrails
• 100 gallon fuel tank (extra tank if requested)
• Two air winches (hydraulic are optional)
