Trailer Rigs

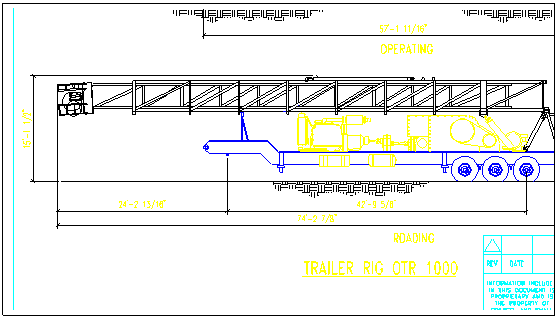

Trailer Rigs OTR 1000

• 500,000 lbs static hook load capacity on 10 lines
• 132 ft clear height mast
• 25,000 ft of 5 in racking capacity
• Mast complete with all accessories and electrical
• Four axles each rated 25,000 lbs with suspension
• 8” main shaft
• 60,000 lbs single line pull
• 44x12 brake
• Lebus grooves
• 13,000 ft of 9/16 in sandline capacity
• Special water Cooling system
• Two caterpillar 3408 DITA engine with Allison transmission and all accessories
• Special design folding platform and handrails
• 100 gallon fuel tank ( extra tank if requested)
• Two air winches (hydraulic are optional)
